How to Troubleshoot Mobile App Redirects

How to Troubleshoot Mobile App Redirects

Scammers have become very smart at hiding their identities, making it difficult for publishers to track them down. As a publisher, the last thing you’d like to happen is annoying to our users.

Users abandoning an app or site is terrible for monetization. If redirects attack you, follow this step by step guide to identify and eliminate the culprit:

Part 1: Connect your phone with Charles Proxy

Step 1: On the Desktop/Laptop: Turn the WiFi on and connect to the WiFi.

Step 2: Click the Wifi icon > Open Network Preferences.

rubicon image 1

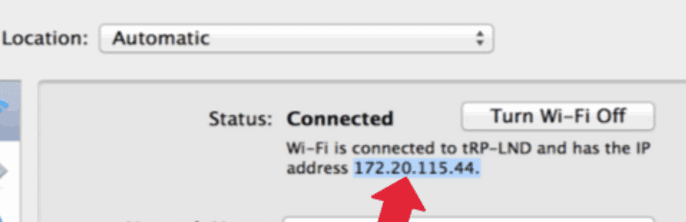

Step 3: Copy the Desktop IP address.

check IP address

Step 4: On the Mobile/ Tablet Device: Select “Settings” > connect to WiFi

settings

Step 5: Click the selected Wifi network.

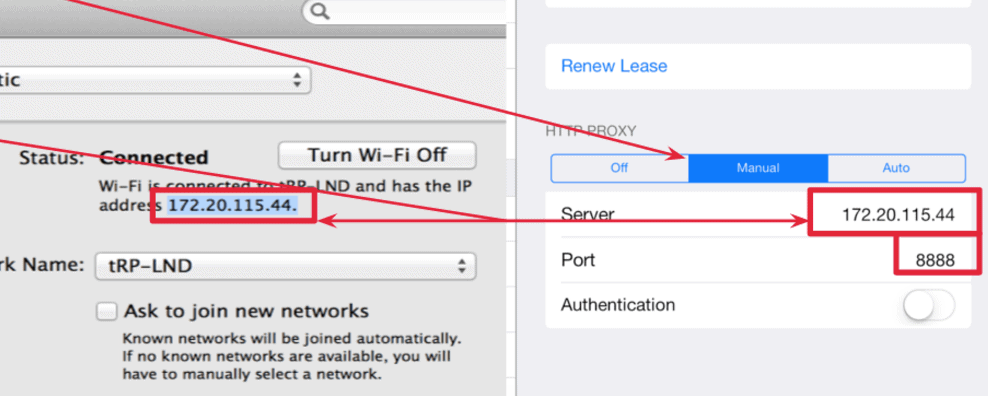

Step 6: Manually insert your IP address.

Step 7: Set Port to 8888.

Set Port to 8888

Step 8: On the Computer/Laptop: Open Charles Proxy > Select the “red button” icon to start recording the session.

Part 2: Navigate to your app to catch a redirect

Mobile app store scammers are smart enough to avoid detection. The hard part with mobile redirects is it is difficult to replicate. Keep Charles Proxy recording on while you navigate through the app.

Part 3: Search for ‘iTunes’ in your Charles session

find itunes

Part 4: Find the Referrer

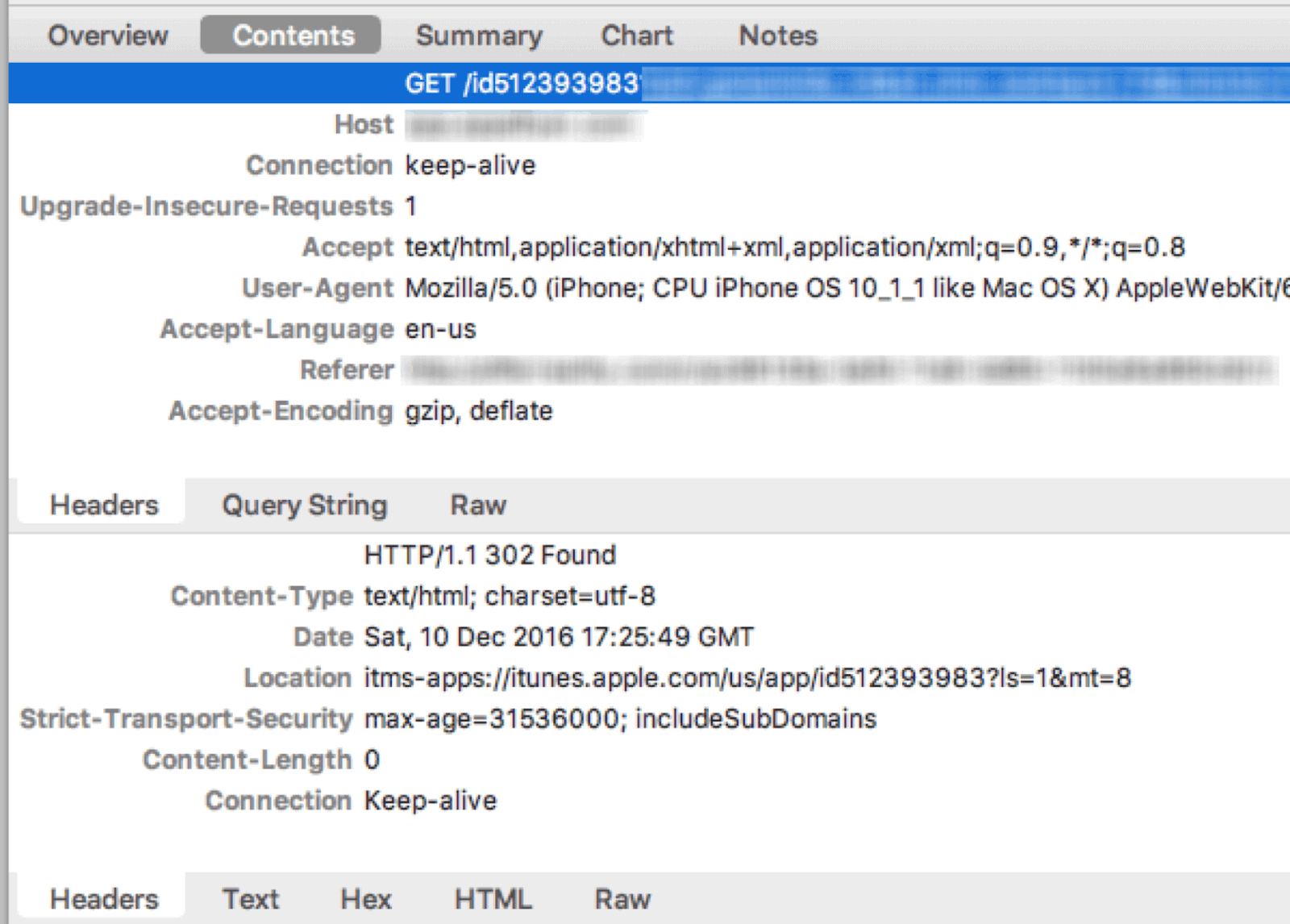

Step 1: Double-click the “Response Header” result in Charles and bring up the full details of the request using the Contents tab. The Referrer is the ad tech company responsible for serving this ad.

Step 2: Pull the Location value from the Headers tab.

Step 3: Remove everything from the URL after the ID value, and then replace “itms-apps” with ‘http’ in a desktop browser window.

Step 4: It should match the app you were initially redirected to.

find referrer

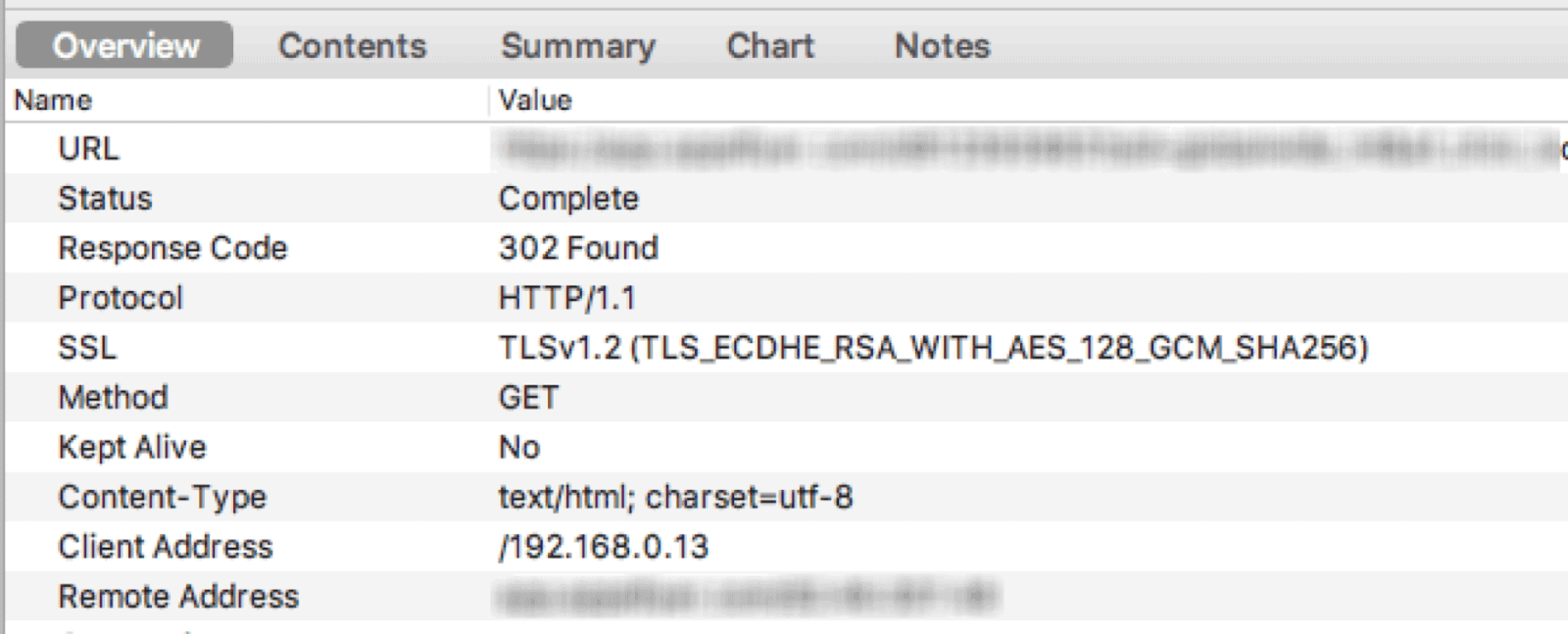

Part 5: Use the Overview tab to find the full URL of the request

This is the link that your browser called which triggered the redirect. The thing is, this might be one of many redirects you have to sort through until you can identify a partner you work with as a publisher.

Be prepared to perform the tedious task.

overview tab

Part 6: Double-click on the URL value to find the relevant parameters.

Your ad tech vendors will need this info.

parameters

Part 7: Find the line item that caused the redirect

Filter “securepub” to see which line item possibly created it.

redirect

Part 8: Pause the problematic line item and inform your ad rep

Part 9: Save your Charles Proxy session

Charles Proxy

There are probably many companies involved in a long redirect chain, and each one will need specific campaign identifiers to locate and suspend the problem in their system.  Your Charles session has all those details contained in it, even if you don’t necessarily know how to find them, and will help everyone move much faster.

Part 10: Send all evidence, including trigger URL and Charles Proxy .har file to the Ad Network serving the redirect.
